PQ3iaB GNSS Supported Package

PQube 3-in-a-Box rugged package with GNSS and 24Vdc cellular modem-ready option. No mounting bracket. No hinge window on door.
Powers from measured voltage (115Vac to 277Vac)

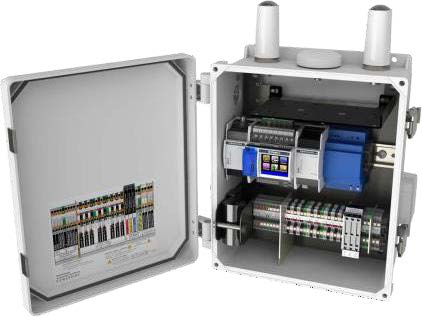

PQube 3 Power Analyzer - pre-packaged in an IP44 rated rugged polycarbonate indoor/outdoor enclosure. Enclosure has no window. Mounting bracket not included.
Includes:
. quick connect terminal blocks for easy field wiring; eight current channels: 333mV or ±10V peak; relay output, analog and digital inputs;
. 1-hour battery backup.
. GPS-R time synchronization module, GNSS antenna and cable.
. Powers from measured voltage (115Vac to 277Vac).
. Includes 24Vdc cellular modem-ready option (modem mounting plate)
. 2 indoor/outdoor enclosure-mounted antennas; internal wiring and 24Vdc modem power.
Features: Class A power quality, high frequency voltage impulse transients (1MHz/4MHz sampling), 2kHz to 150kHz conducted emissions recording; and Modbus/CTP, BACnet/TCP, DNP3.0,
SNMP V1, V2c & V3, including traps.

(PQ3iaB-Rugged-M24-GNSS-A02)
