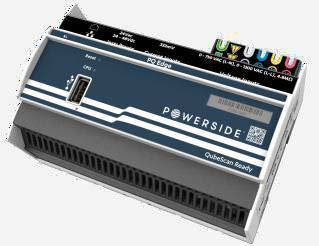

PQ Edge Power Analyzer

PQ Edge Power Analyzer with 4 Voltage (0 to 750Vac), 4 current channels (accepts split-core or Rogowski CTs with voltage outputs). 32GB internal memory.
Optional environment probe for temperature/humidity/barometric pressure/3-axis acceleration (not included).
Class A IEC 61000-4-30 Ed3 Power Quality, 2kHz to 9kHz voltage conducted emissions; 4 channel Energy metering: 4-quadrant energy metering Class 0.5 (ANSI C12.20), Class 0.5 (IEC 62053-22)- for both PQ Edge and CTs (using Powerside Ultra-precise CTs).
Protocols: HTTP/HTTPS, FTP/FTPS, POP/SMTP (mail), NTP/SNTP,
Modbus/TCP, DNP3.0, BACnet/TCP, SNMP V1,V2c,V3 (including traps).

(PQE-PQ-004N-0000-XXXX)
